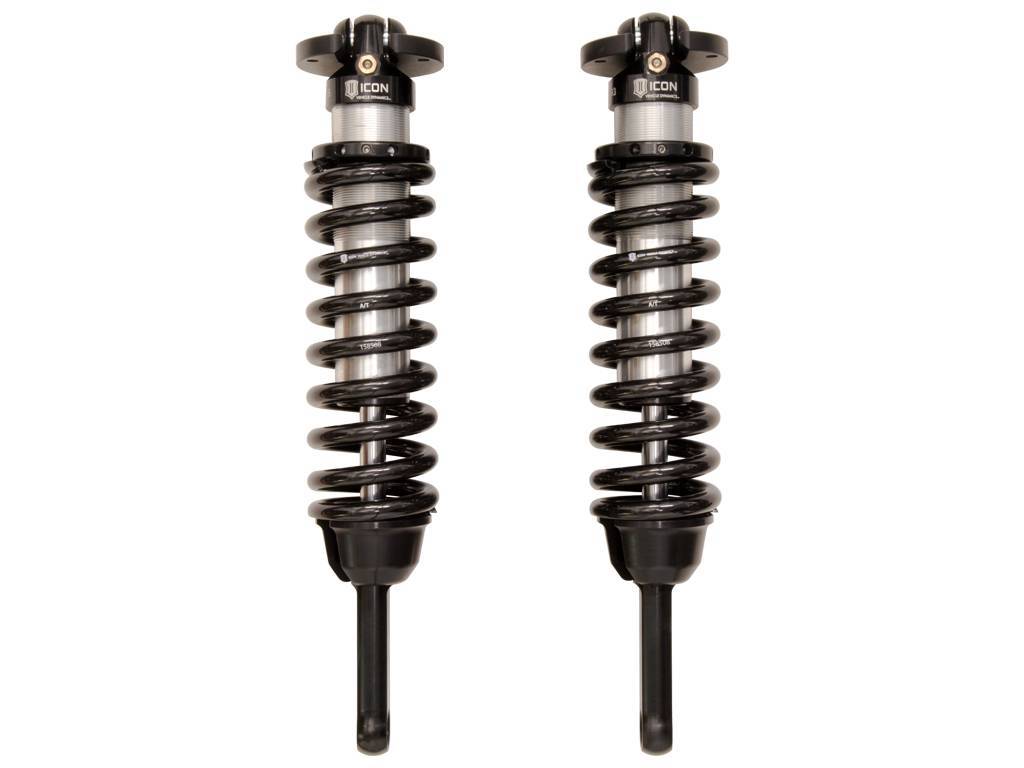

ICON 2005-Up Toyota Tacoma 2.5 VS Extended Travel Coilover Kit

Coilover Spring and Shock Assembly

58635

These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.

These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.

  • Adjustable coilovers yield 0-2.75" of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" diameter shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

Applications:

ICON 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT

Limited Supply
Was: $1,532.95
Sale: $1,459.95
Save: 5%
Save: $73.00

Qty:
Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Compatibility

2005-2015 Toyota Tacoma 2wd Pre-Runner / 4wd

*Does NOT FIT 5 lug Tacoma

NOT for use with Factory Upper Control Arms

Technical Specs

  • Adjustable ride height from 0" - 3.5"
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Cad-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Made in the USA
  • Nitro-steel shaft will not chip or rust like chrome shafts

    • Wheel & Tire Fitment Info

    Recommended tire size 285/75R16, wheel 16 X 8 with 5" back spacing

    Application Notes

    Notes:

    OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Aftermarket front upper control arms required for installation TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
