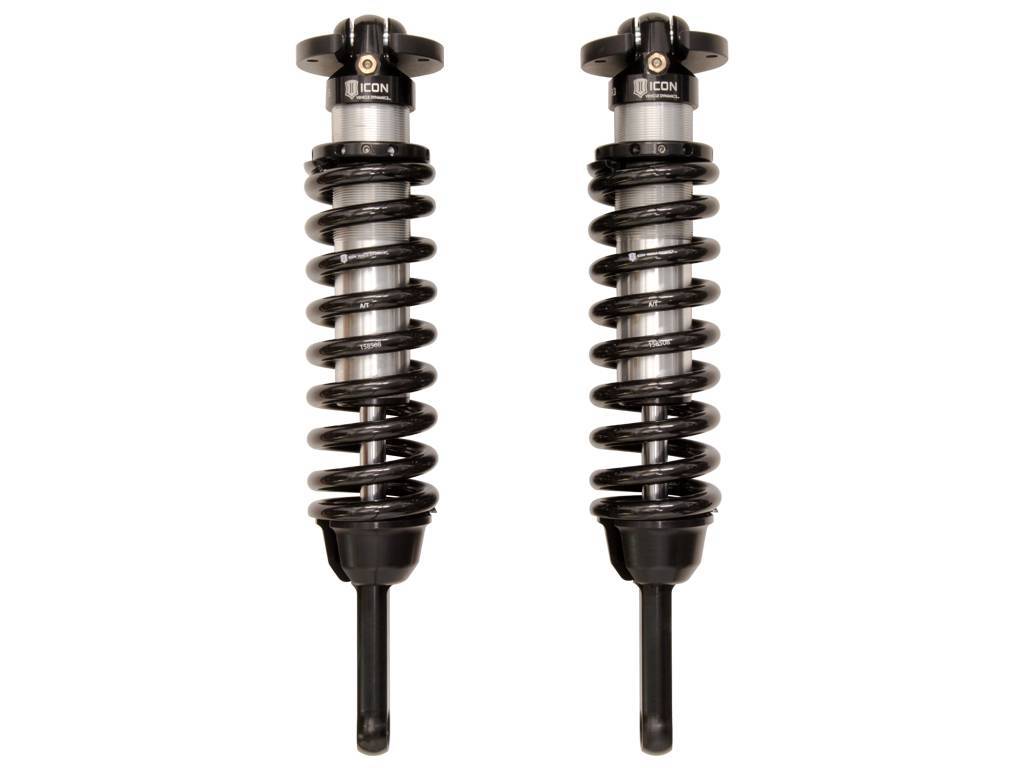

ICON 2005-Up Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, 700lb Coils

Coilover Spring and Shock Assembly

58635-700

These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.

These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.

  • Adjustable coilovers yield 0-2.75" of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

Applications:

ICON 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB

Limited Supply
Was: $1,742.95
Sale: $1,659.95
Save: 5%
Save: $83.00

Qty:
Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Compatibility

2005-2015 Toyota Tacoma 2wd Pre-Runner / 4wd

*Does NOT FIT 5 lug Tacoma

NOT for use with Factory Upper Control Arms

Technical Specs

  • 700 lb Coil Spring Installed
  • Adjustable ride height from 0" - 3.5"
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Cad-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Made in the USA
  • Nitro-steel shaft will not chip or rust like chrome shafts

    • Wheel & Tire Fitment Info

    Recommended tire size 285/75R16, wheel 16 X 8 with 5" back spacing

    Application Notes

    Notes:

    OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Aftermarket front upper control arms required for installation TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
