Dirt King Long Travel Race Kit - DK-702909

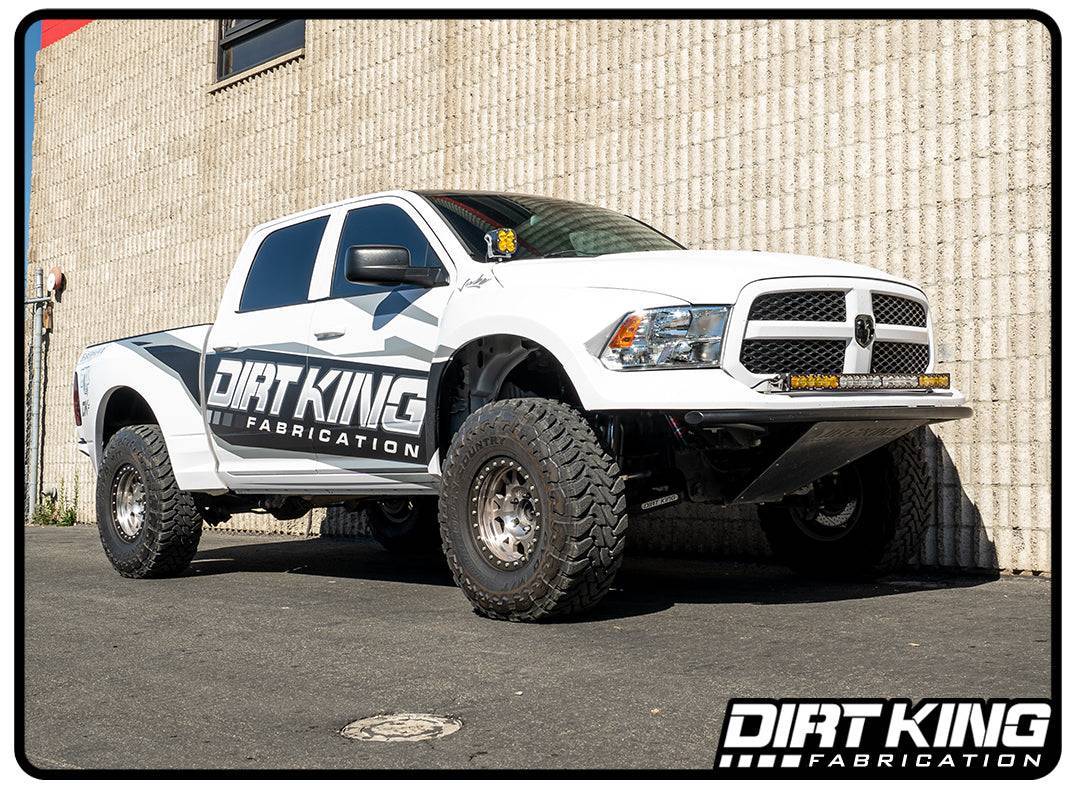

This suspension system was developed for the most extreme off-road terrain. The long travel race kit is capable of 16” of travel and can accept up to a 35” tire. We have perfected the suspension geometry by modifying the outer pivot locations on the spindle. With these changes we were able to achieve twice the amount of travel compared to stock and eliminate bump steer throughout the suspension cycle. The kit accepts 2.5 x 10” coil overs, 2.5 x 10” bypasses, and 2.0 x 2.0 bump stops for superior suspension dampening. The spindles upgrade the hubs and brakes to Titan components for additional strength. This kit is CAD designed, thoroughly tested, and 100% made in America. The result is a suspension system with reliable performance and off road handling that will exceed all expectations. This kit must be installed by a qualified off road shop.

2 Wheel Drive Models Only

Specifications

• Wheel Travel: 16”
• Amount of Lift: 0-4”
• Track Width: 6” wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Coil Over Shock Size: 2.5 x 10”
• Bypass Shock Size: 2.5 x 10”
• Bump Stop Size: 2.0 x 2.0

  Shocks
• The shocks will not bolt into the coil bucket, you must custom build shock hoops.

  Wheel Travel
• When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve those numbers. Our suspension systems are built to allow for maximum wheel travel, perfected suspension geometry, and an overall product with a simplified installation process and is easily serviceable. We disclose as much information as possible so you can make an educated purchase and won’t be left with any surprises.

  Tire Info
• When using 35” tires with this kit modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.

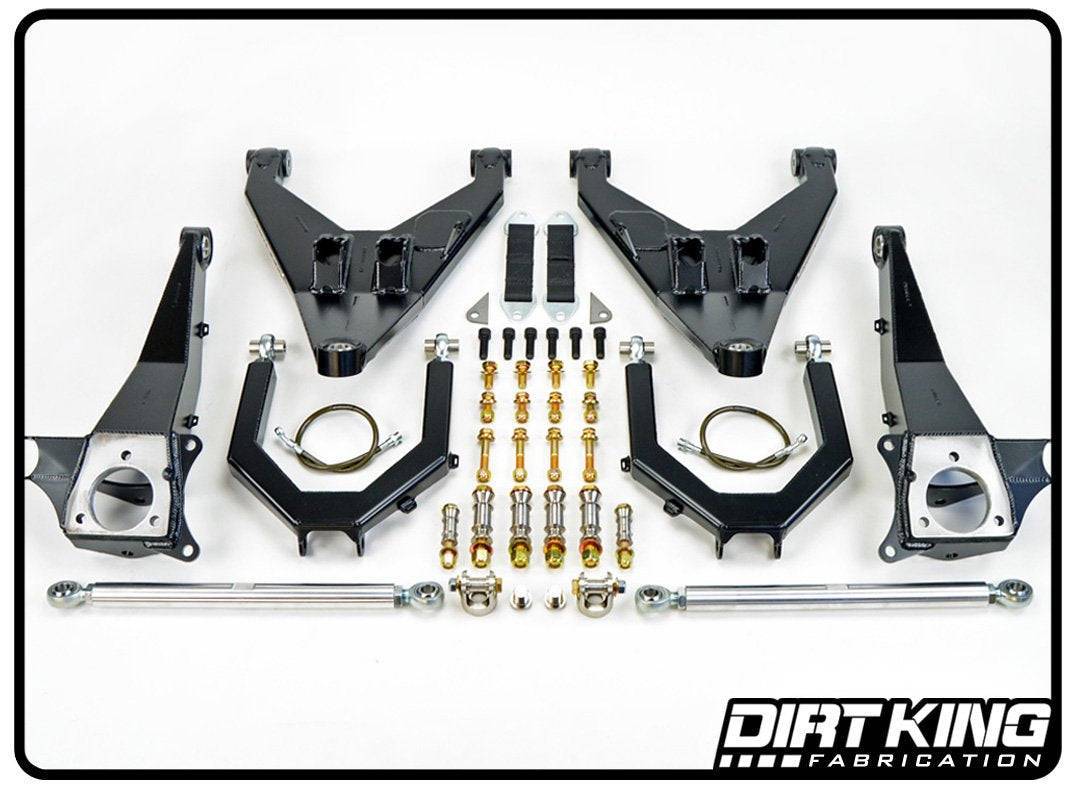

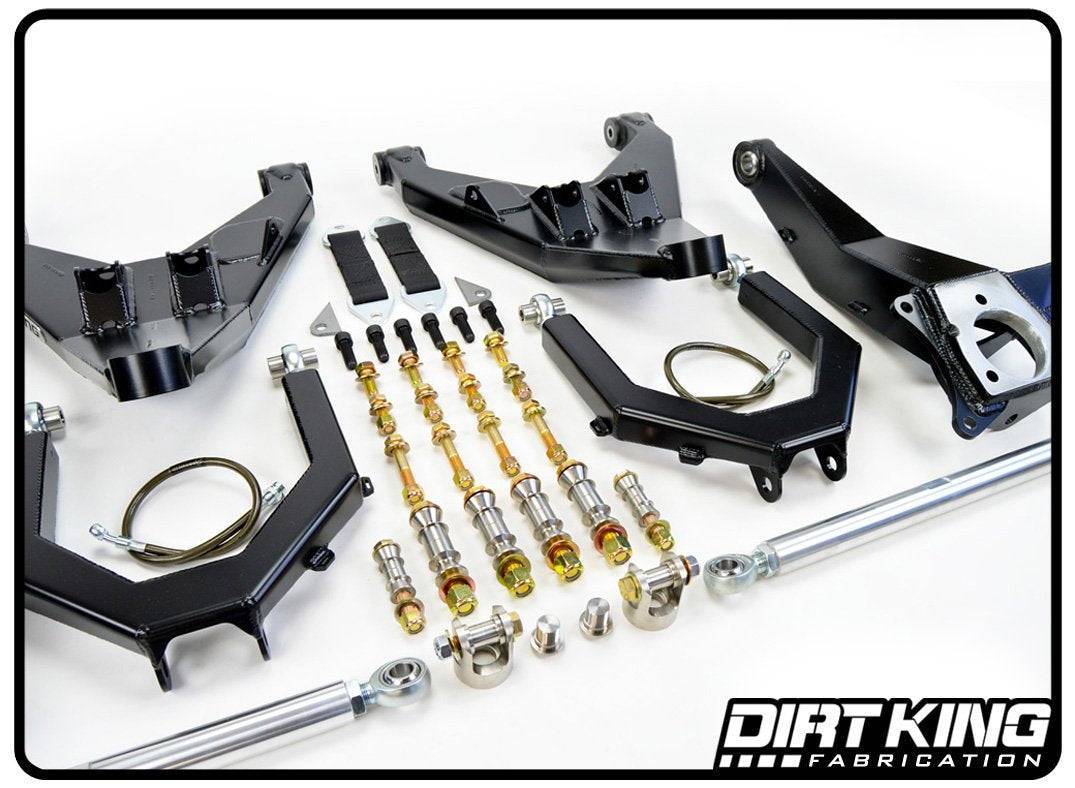

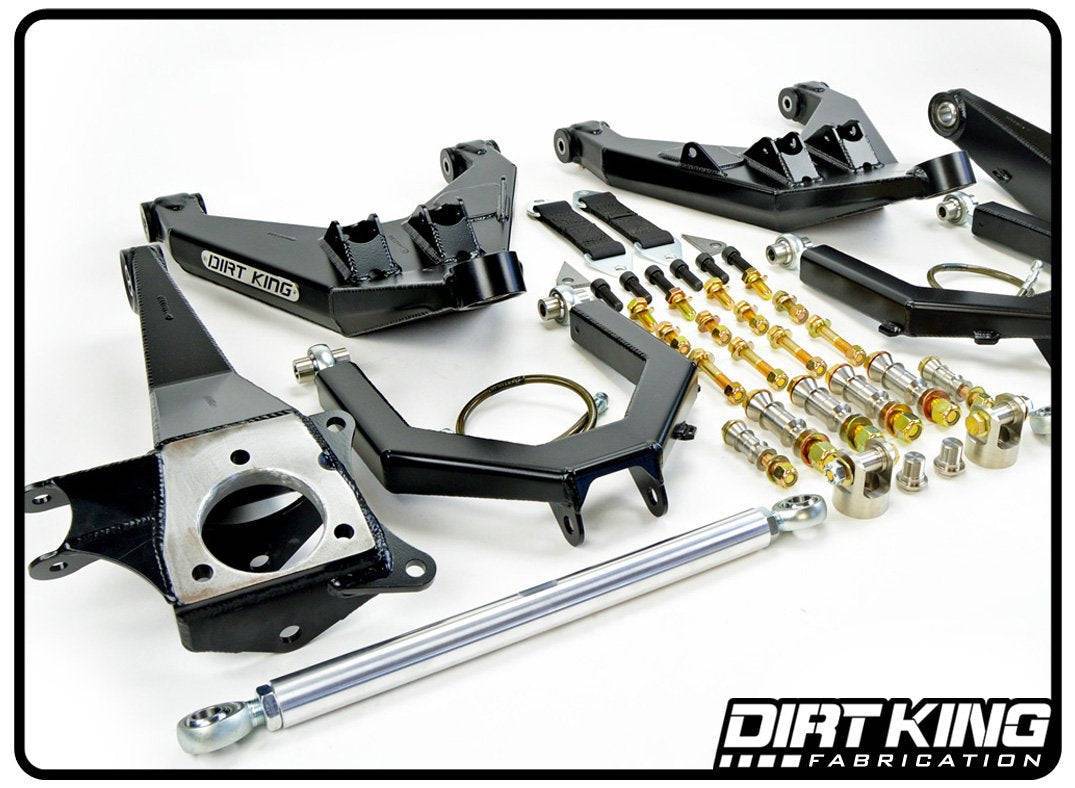

What's Included

• Boxed plate upper control arms
• Boxed plate lower control arms
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel steering clevis’s
• Billet aluminum heimed tie rods
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Durable black powder coat finish

Features

• Utilizes American made FK bearings
• 4130 chromoly uniball cups
• ¾” heims for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" & 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Limit strap tabbing
• Bump stop plating
