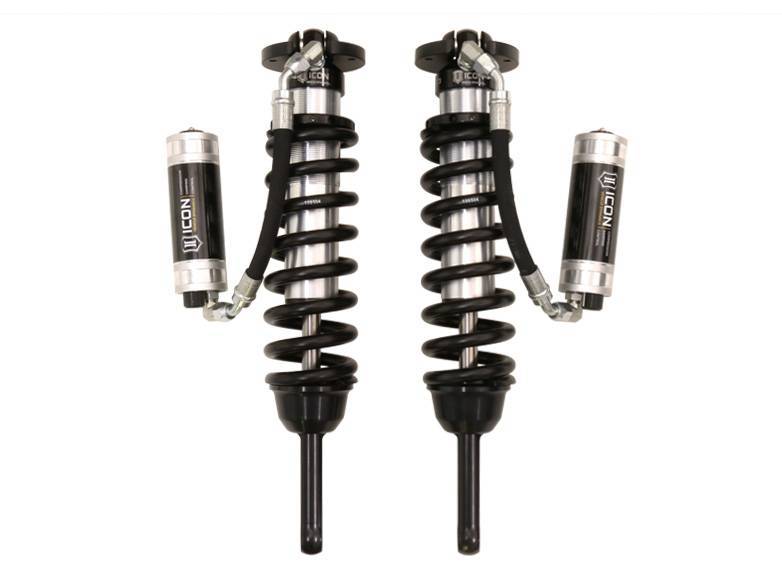

ICON 2005-Up Toyota Tacoma 2.5 VS RR/CDCV Coilover Kit

Coilover Spring and Shock Assembly

58730C

2005-UP TACOMA 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

Limited Supply
Was: $2,236.45
Sale: $2,129.95
Save: 5%
Save: $106.50

Qty:
Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Compatibility

2005-2015 Toyota Tacoma 2wd Pre-Runner / 4wd

*Does NOT FIT 5 lug Tacoma

Technical Specs

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended off-road use
  • ICON CDCV (Compression Damping Control Valve) equipped for external tunability of your shocks
  • Height-adjustable coilovers offer 0-3.5" of lift height
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no drilling or welding necessary for installation
  • Made in the USA

    • Wheel & Tire Fitment Info

    OEM Wheels & Tires: Yes (Wheel spacers required to run factory wheels with an oversized tire)

    Aftermarket Wheels: 8-8.5" Wide Wheel With 4.75" Backspace

    Aftermarket Tires: 33" x 11.50" Tires

    (Larger Tires May Fit but Fender Trimming and Modifications will be Required)


    Application Notes

    Notes:

    OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W12.0000” x H8.0000” x L27.0000”
    • Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
