ICON Vehicle Dynamics
Click on image to zoom

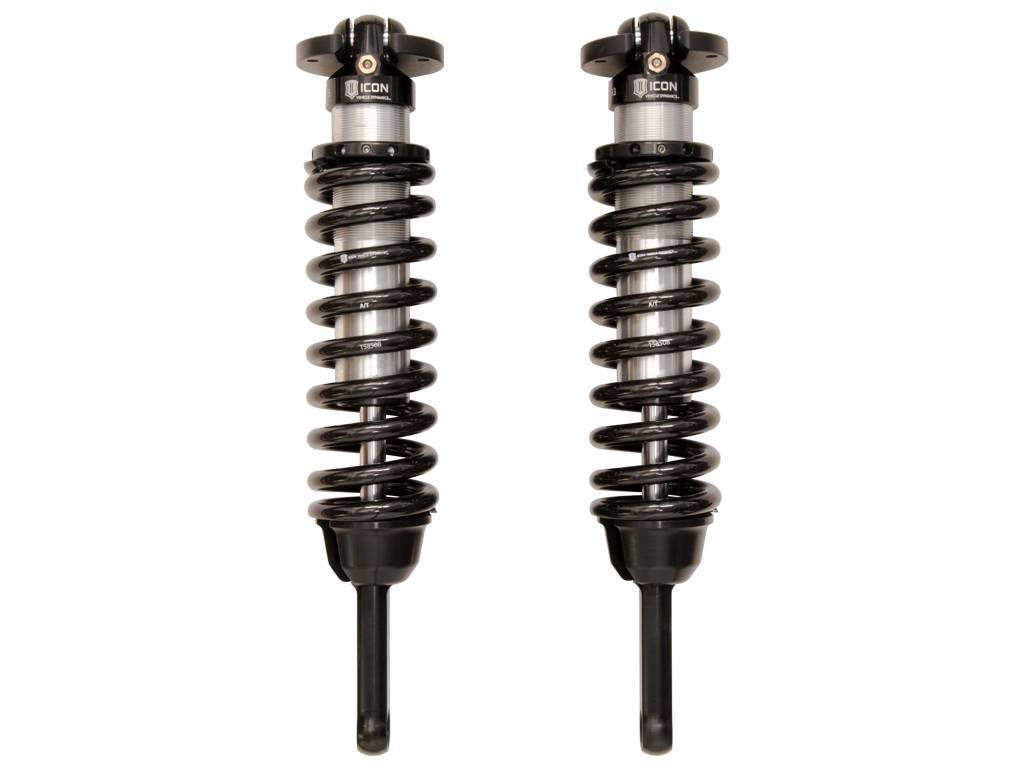

ICON 2005-Up Toyota Tacoma, 2.5 VS Coilover Kit, 700lb Coils

Coilover Spring and Shock Assembly

58630-700

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shocks larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shocks larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

  • Vehicle specific tuned front shocks for superior shock damping and control
  • Improved ride quality over stock both on and off-road
  • Height-adjustable coilovers offer 0-2.75" of lift height adjustment
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft

Applications:

ICON 05-UP TACOMA 2.5 VS IR COILOVER KIT-700

Limited Supply
Was: $1,742.95
Sale: $1,659.95
Save: 5%
Save: $83.00

Qty:
Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Compatibility

2005-2015 Toyota Tacoma 2wd Pre-Runner / 4wd

*Does NOT FIT 5 lug Tacoma

Technical Specs

  • 700 lb Coil Spring Installed
  • Adjustable ride height from 0" - 3.5"
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Cad-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Made in the USA
  • Nitro-steel shaft will not chip or rust like chrome shafts

    • Wheel & Tire Fitment Info

    Recommended tire size 285/75R16, wheel 16 X 8 with 5" back spacing

    Application Notes

    Notes:

    OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 50.0 lbs.
    • W13.0000” x H7.0000” x L26.0000”
    • Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
