Total Chaos 2021-2022 FORD F150 Heavy-Duty Upper Control Arm Kit | 80502
Total Chaos', 'Control Arms', 'Suspension Kit', 'Off Road
80502

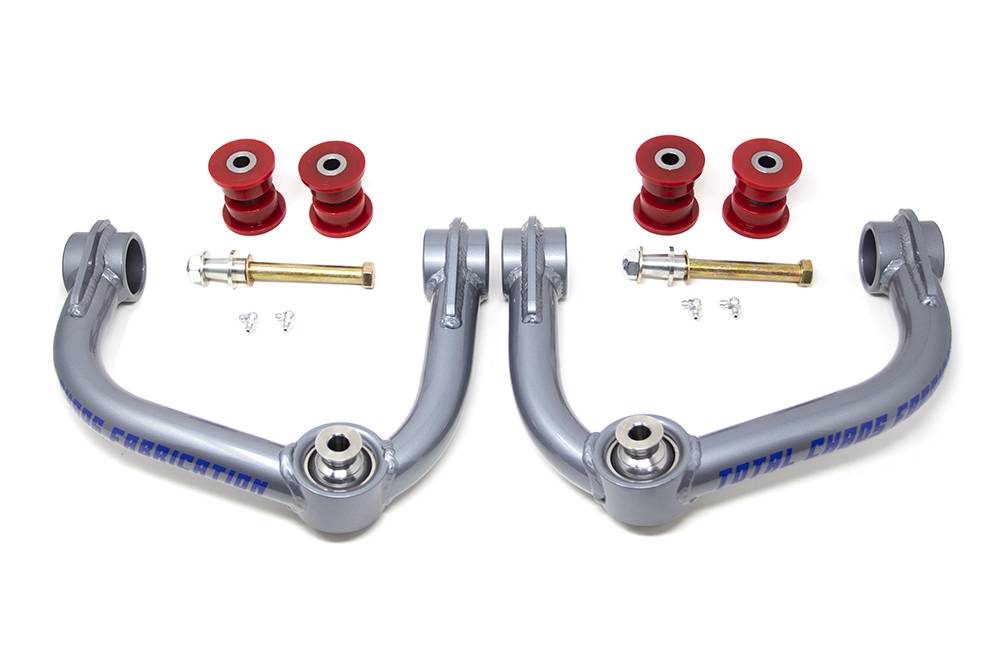

Kit Includes:
- Mounting hardware
- Upper control arms
- Mounting hardware
- Upper control arms
Was:
$1,158.84
Sale:
$1,100.90
Save:
5%
Save:
$57.94
Description
Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too.
Our UCA's are designed to add caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs. Features: UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.
Upper control arms combined with extended length coilover shocks will allow for up to 1'' of additional wheel droop travel.
Urethane bushings reduce bushing deflection compared to stock rubber bushings.
4130 chromoly tubular upper control arms are 100% bolt on.
CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel. Drilling the lower taper of the spindle with a 9/16" drill bit for clearance is required to install the bolt. No irreversible changes are made for re-installing a ball joint.
TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.
Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.
Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
Complete Grade 8 hardware kit is included.
Hand crafted in the U.S.A.
Not compatible with air ride or variable ride height models.
Upper Control Arm fits: 2021 F150, 2022 F150, 2023 F150.
Our UCA's are designed to add caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs. Features: UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.
Upper control arms combined with extended length coilover shocks will allow for up to 1'' of additional wheel droop travel.
Urethane bushings reduce bushing deflection compared to stock rubber bushings.
4130 chromoly tubular upper control arms are 100% bolt on.
CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel. Drilling the lower taper of the spindle with a 9/16" drill bit for clearance is required to install the bolt. No irreversible changes are made for re-installing a ball joint.
TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.
Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.
Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
Complete Grade 8 hardware kit is included.
Hand crafted in the U.S.A.
Not compatible with air ride or variable ride height models.
Upper Control Arm fits: 2021 F150, 2022 F150, 2023 F150.
Details
- 80502
- 80502
- Total Chaos Suspension
- New
Shipping Information
- Item Requires Shipping
- 38.0 lbs.
- W10.0000” x H8.0000” x L28.0000”
- $70.00
