Dirt King Titan Swap Kit - DK-702924

The Titan swap kit is the most affordable route to improve your vehicle’s front-end handling. This kit is developed to pair with Titan lower control arms to increase the front track width 3” per side. The kit is both 2WD and 4WD compatible along with the purchase of extended axle shafts. The upper control arms are designed with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

2 Wheel Drive and 4 Wheel Drive Models

4WD requires DK-702948

Specifications

• Wheel Travel: Additional 3” of travel compared to stock
• Amount of Lift: Allows for 0-3” of lift
• Track Width: 3” wider per side
• Maximum Tire Size: 33”
• Maximum Backspacing: 5.25”
• Minimum Rim Size: 17”

  Tire Info
• The upper control arms allow for 33” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

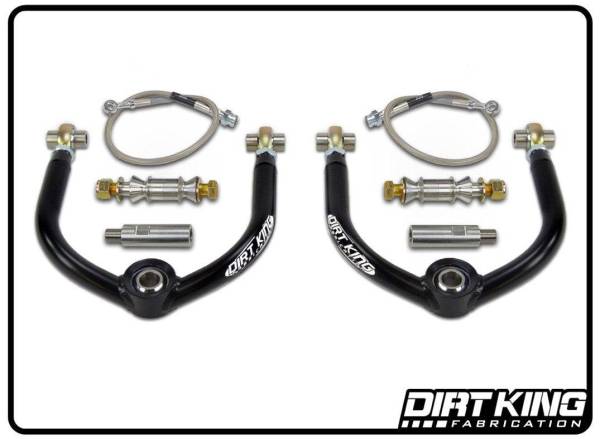

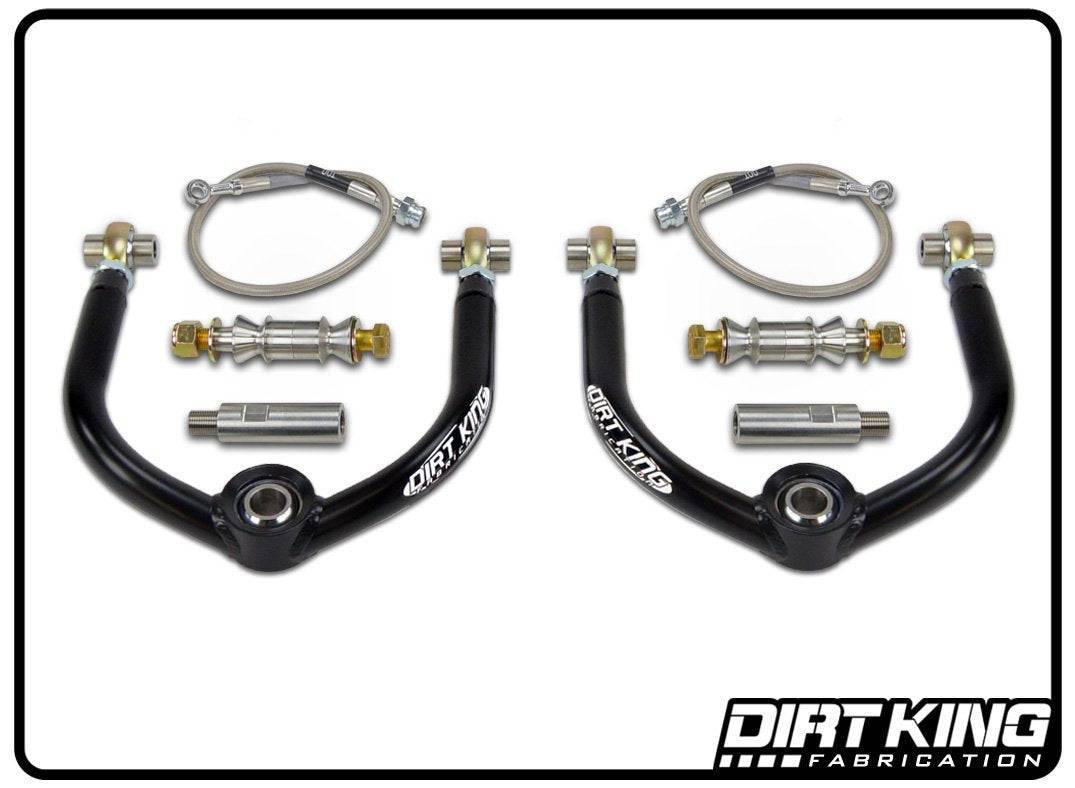

What's Included

• Chromoly upper control arms
• ¾” FK heims
• 1” FK uniballs
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel steering extensions
• Military grade F911 hardware
• Extended DOT approved brake lines
• Durable black powder coat
• Dirt King sticker pack
• Installation instructions

Features

• CAD designed
• Complete 4130 chromoly construction
• Preassembled for fast installation
• Zinc plated components for corrosion resistance
• Professionally MIG welded
• Proudly made in the USA
