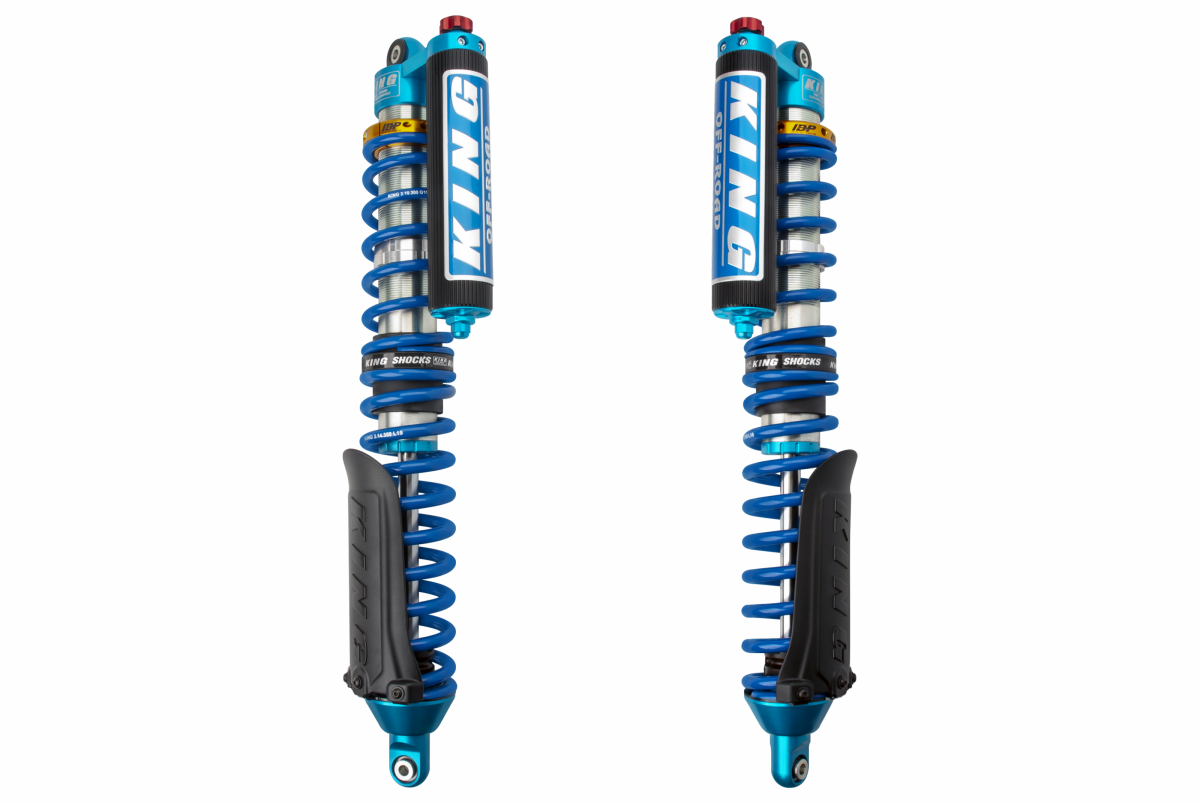

MAVERICK X3 & X3 X RS 72" TRACK WIDTH 2017+ 2/4 SEAT FRONT 2.5 INTERNAL BYPASS PIGGYBACK COILOVER W/FINNED RESERVOIR W/ADJUSTER (HIGH PERFORMANCE, REQUIRES CUTTING)

*Sold as each

Features include
• 100% bolt-on performance.
• Increased wheel travel.
• Adjustable ride height.
• Large 2.5” diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s IBP internal bypass shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your UTV.
• Fully rebuildable, serviceable and tunable.

• Standard Option: Finned Reservoir
o 2.5” Series External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
o Increased surface area helps to dramatically dissipate heat.
o All new threaded end cap design with new Schrader valve protective cap.
o Made from extruded 6061-T6 aluminum – no sleeve.
o New Built in billet clamp for direct replacement mounting to factory roll cage or easily adaptable to custom roll cages.

• Standard Option: Compression Adjuster
o Comes standard with King’s 2.5 Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.
o Reduces shock cavitation.
