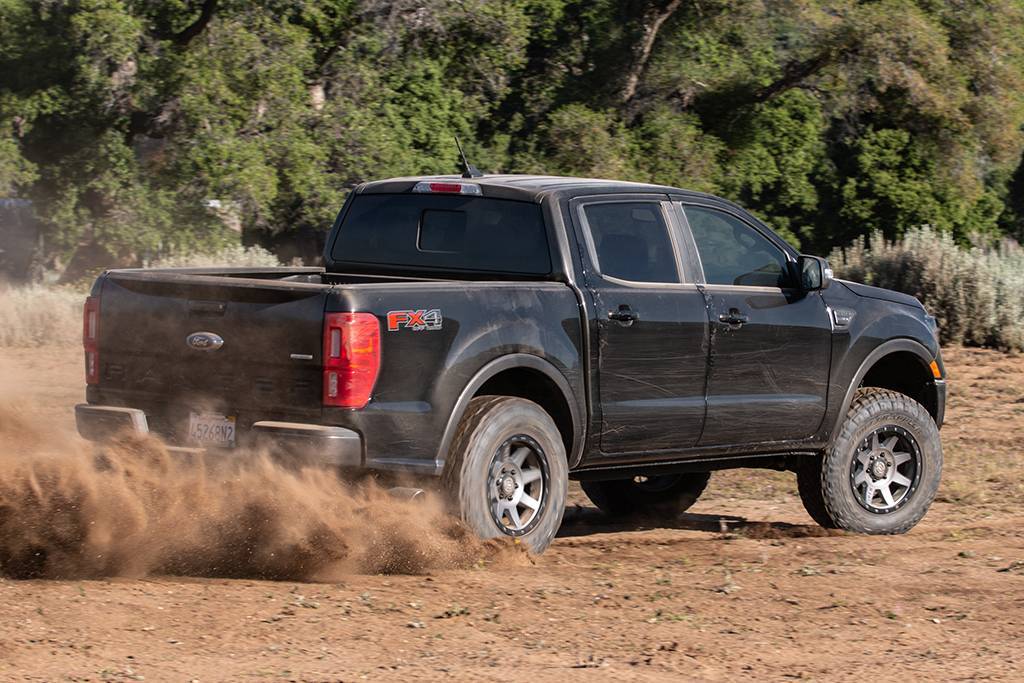

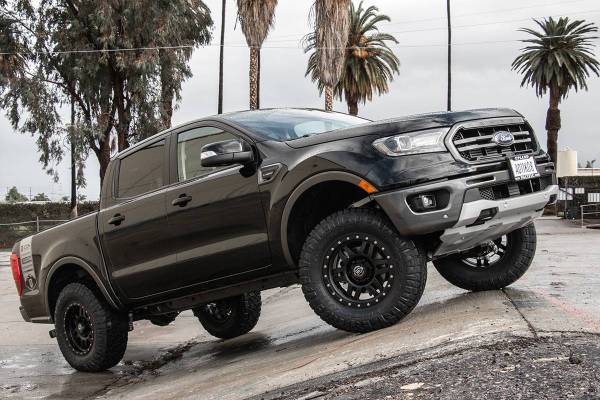

ICON 2019-2021 Ford Ranger, 0-3.5" Lift, Stage 1 Suspension System
Suspension Lift Kit
2019-2021 FORD RANGER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM

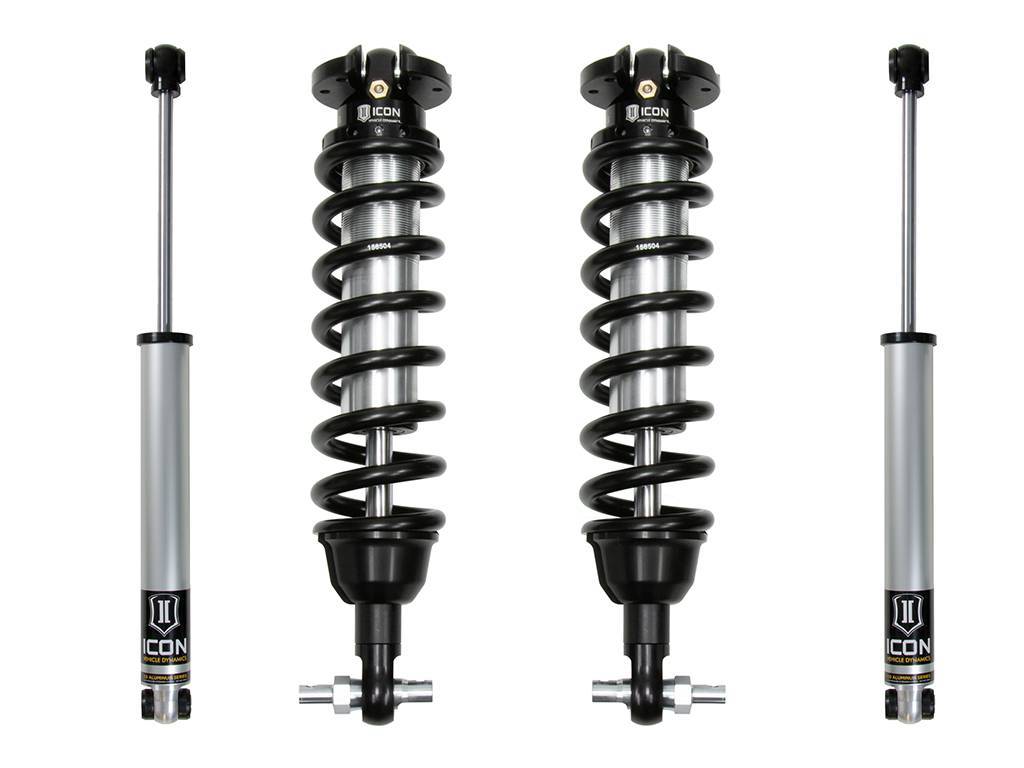

ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platforms suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel†through the range of travel. These coilovers are also height adjustable from 0-3.5†allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Height-adjustable coilovers provide a range of 0-3.5” of front lift height
- Fits 2WD & 4WD applications
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 25% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Corrosion resistant anodized shock body with 5/8? shaft (2.0 Aluminum Series shocks)
- Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- Direct bolt-in design makes for a simple and straightforward installation
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Application Notes
Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
Shipping Information
- Item Requires Shipping
- 53.0 lbs.
- W12.0000” x H6.0000” x L27.0000”
