ICON 2005-07 Ford F250/F350, 7" Lift, Stage 5 Suspension System, W/Radius Arm
Suspension Lift Kit
2005-2007 FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WTIH RADIUS ARM

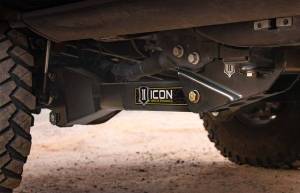

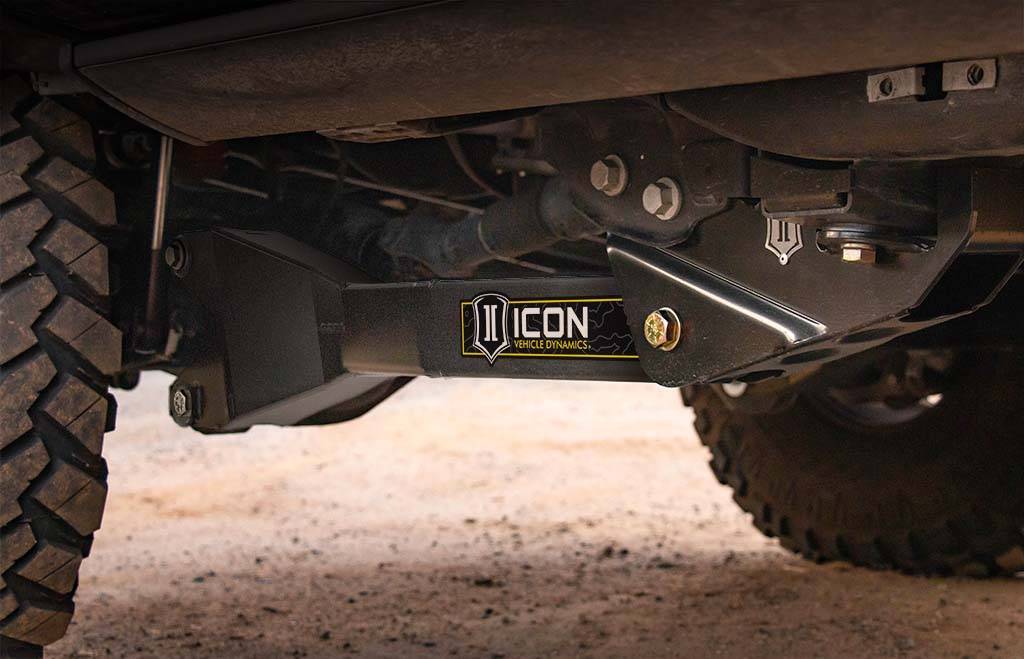

This ICON Vehicle Dynamics 7†suspension system is a great way to lift your 4WD 2005-2007 Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and provides ultimate performance for extreme off-road adventure. ICON's 7" Stage 5 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, ICON CDC Valve 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.;This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37†tall tire clear without coming in contact with the radius arm.
- Approximately 50% increased front wheel travel over stock
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Progressive leaf springs improve ride quality without reducing towing capacity
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and re-valvable
Application Notes
OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION APPLICATION NOTE #28: PINCH WELD ON ‘05-’10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE APPLICATION NOTE #29: 7” SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK Ships in multiple boxes
Shipping Information
- Item Requires Shipping
- 507.0 lbs.
- W48.0000” x H10.0000” x L48.0000”
