ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System
Suspension Lift Kit
1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 1 SUSPENSION SYSTEM

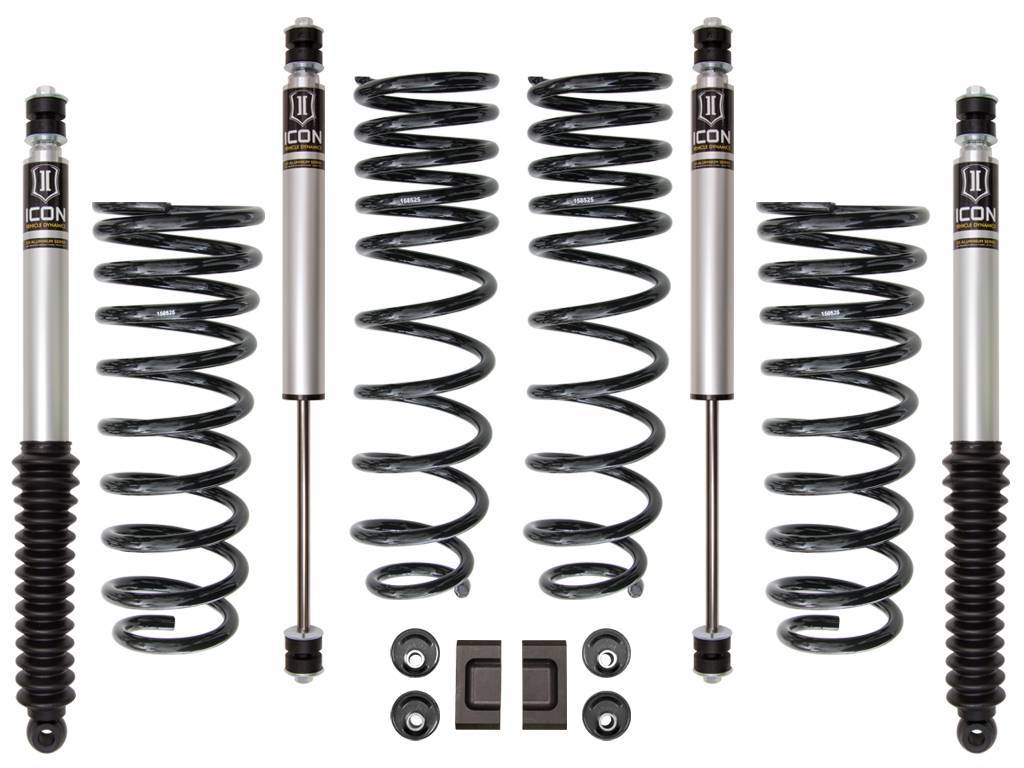

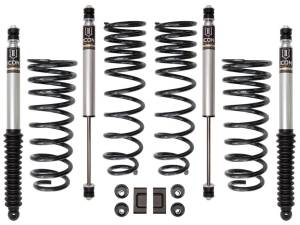

After an in-depth R&D process, ICON engineers have developed a 3†suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruisers off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
- 3” lift height
- Approximately 40% increased front wheel travel over stock
- Approximately 35% increased rear wheel travel over stock
- ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
- Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
- 2.0 aluminum body IFP shocks with 5/8" shaft
- Corrosion resistant anodized aluminum shock body
- 6061 aircraft grade aluminum CNC machined components
- 100% bolt-on design means no drilling, cutting or welding necessary for install
Application Notes
OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Shipping Information
- Item Requires Shipping
- 109.0 lbs.
- W13.0000” x H7.0000” x L21.0000”
- Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
