ICON 2019-2021 Ford Ranger 4WD, 0-3.5” Lift, Extended Travel 2.5 VS Coilover Kit
Coilover Spring and Shock Assembly

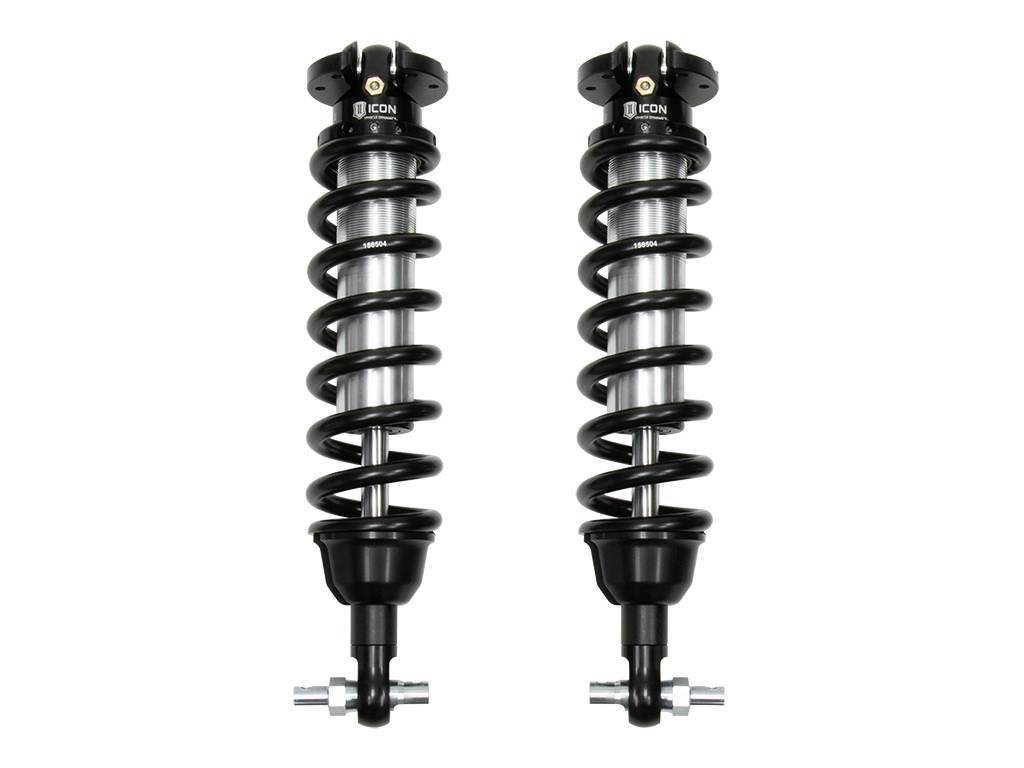

2019-2021 FORD RANGER 4WD EXTENDED TRAVEL 2.5 VS INTERNAL RESERVOIR COILOVER KIT
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable
- Adjustable coilovers yield 0-3.5” of front lift height
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

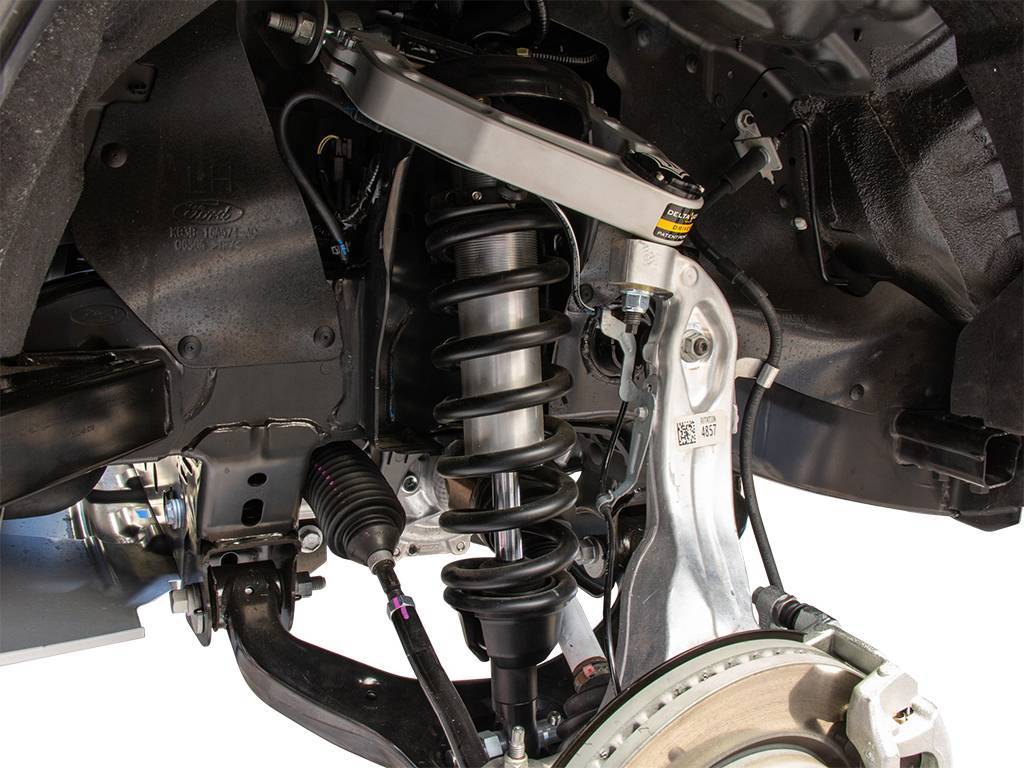

- Bolt-in design makes for an easy install into OEM shock location
Application Notes
Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5.75" Backspace / 25mm Offset Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required) TECH NOTE: Extended travel coilovers also require ICON front upper control arms. DO NOT install in conjunction with OE front upper control arms.
Details
- 91255
- 91255
- 00840103406879
- ICON Vehicle Dynamics
- New
Shipping Information
- Item Requires Shipping
- 45.0 lbs.
- W13.0000” x H7.0000” x L26.0000”
- Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
