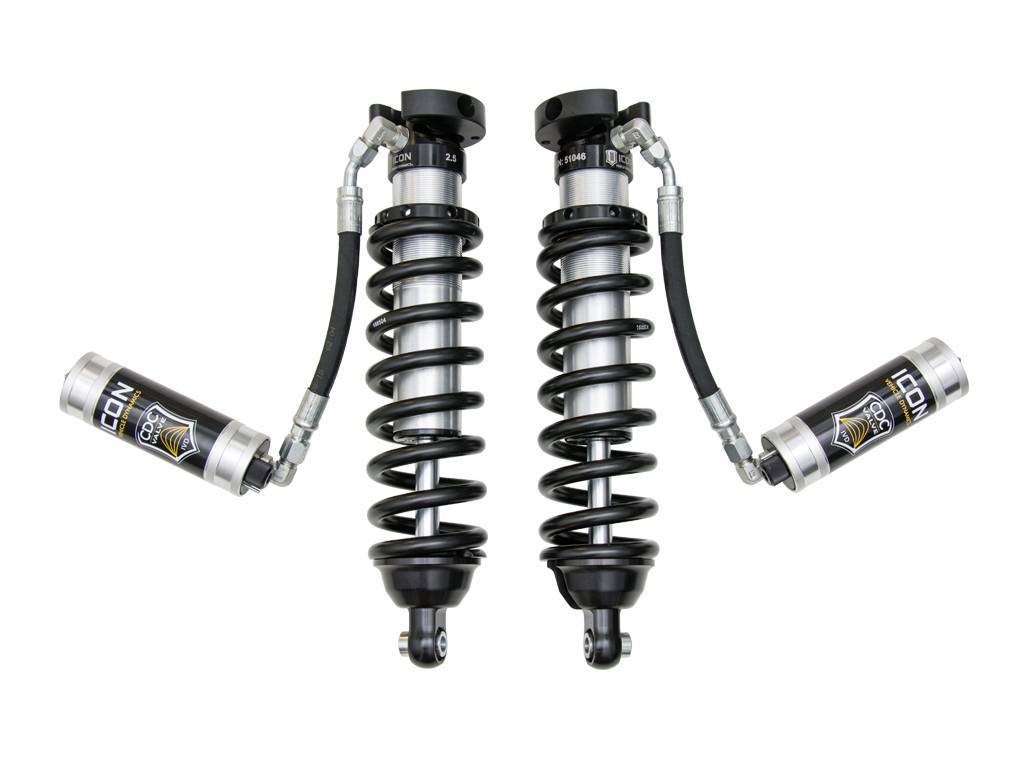

ICON 1996-04 Toyota Tacoma 2.5 VS Extended Travel RR/CDCV Coilover Kit, 700lb Coils

Coilover Spring and Shock Assembly

SKU: 58715C-700

1996-2004 TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT 700LB

Limited Supply

Was: $2,435.95

Sale: $2,319.95

Save: 5%

Save: $116.00

Application Notes
Details
Shipping
Documents

Application Notes

Notes:

Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) TECH NOTE: Aftermarket front upper control arms required for installation TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

Details

SKU: 58715C-700
Item #: 58715C-700
UPC #: 00840103404189
Brand: ICON Vehicle Dynamics
Year Make Model: 2004 Toyota Tacoma
Year Make Model: 2003 Toyota Tacoma
Year Make Model: 2002 Toyota Tacoma
Year Make Model: 2001 Toyota Tacoma
Year Make Model: 2000 Toyota Tacoma
Year Make Model: 1999 Toyota Tacoma
Year Make Model: 1998 Toyota Tacoma
Year Make Model: 1997 Toyota Tacoma
Year Make Model: 1996 Toyota Tacoma
Year Make Model: 1995 Toyota Tacoma
OEM WHEELS & TIRES FITMENT: Yes
SPRING RATE: 700
SPRING MATERIAL: Steel
SPRING COLOR: Black
SHAFT DIAMETER: 0.875
SERVICE PARTS: 191016 - 7.5" FINNED RESI UPGRADE KIT
SERVICE PARTS: 252001 - 2.5 FIXED SPANNER WRENCH
SERVICE PARTS: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
SERVICE PARTS: 252003 - SEAL INSTALL TOOL 2.5/3.0
SERVICE PARTS: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
SERVICE PARTS: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
SERVICE PARTS: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
SERVICE PARTS: 611019 - COILOVER HARDWARE KIT PAIR
SERVICE PARTS: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
REMOTE RESERVOIR: Yes
RECOMMENDED AFTERMARKET WHEELS: ICON Alloys
RECOMMENDED AFTERMARKET TIRES: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
MATERIAL: Aluminum
GRADE TYPE: Performance
DUST SHIELD: NO
DAMPING TYPE: Oil
COIL OVER SPRINGS INCLUDED: Yes
ADJUSTABLE DAMPING: Yes
ADD-ON PART: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
ADD-ON PART: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
ADD-ON PART: 198001 - BILLET SPANNER WRENCH KIT
ADD-ON PART: 252012 - -4 TO -10 HOSE SHIELD KIT
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 54.0 lbs.
Package Dimensions: W12.0000” x H8.0000” x L27.0000”
Shipping: Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Documents
