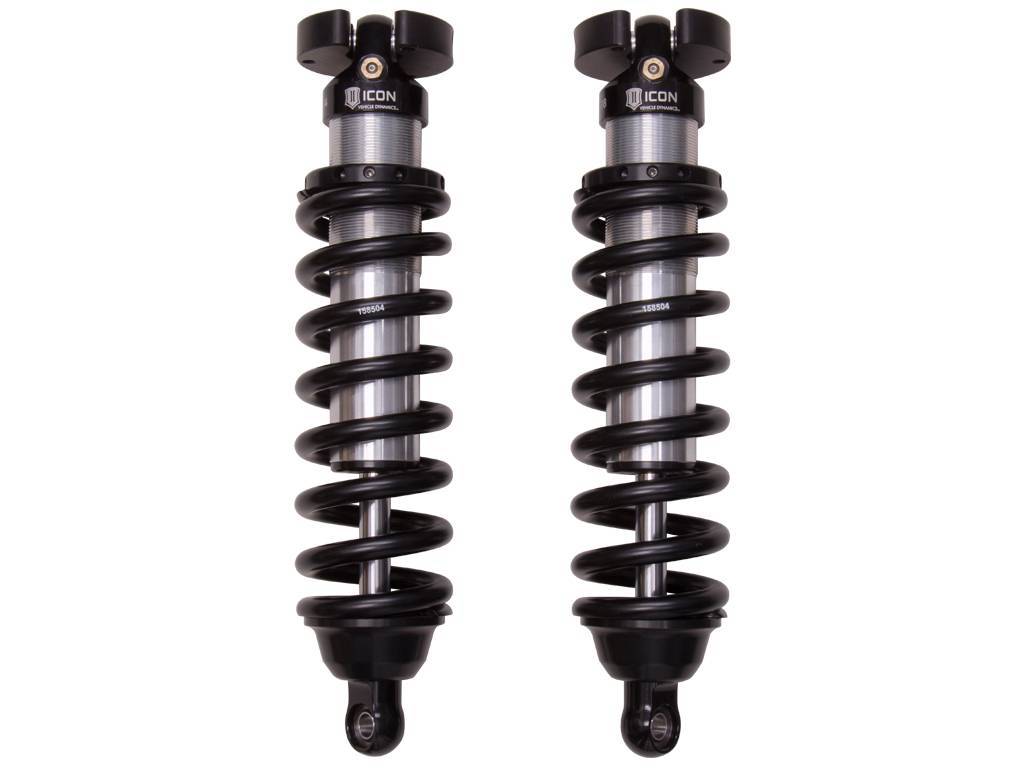

ICON 1996-04 Tacoma/96-02 4Runner 2.5 VS Extended Travel Coilover Kit, 700lb

Coilover Spring and Shock Assembly

58615-700

1996-2004 TACOMA/1996-2002 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB COILS

Limited Supply
Was: $1,742.95
Sale: $1,659.95
Save: 5%
Save: $83.00

Qty:
Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD

Compatibility

1996-2004 Toyota Tacoma 2wd Pre-Runner / 4wd
1996-2002 Toyota 4-Runner

*Does NOT FIT 5 lug Tacoma

NOT for use with Factory Upper Control Arms

Technical Specs

  • Adjustable ride height from 0" - 3.0"
  • 700 Lb coil springs
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Cad-plated threaded body
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5" shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Made in the USA
  • Nitro-steel shaft will not chip or rust like chrome shafts

    • Application Notes

    Notes:

    Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8"-9" wide wheel with 5" backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) TECH NOTE: Aftermarket front upper control arms required for installation TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 45.0 lbs.
    • W13.0000” x H7.0000” x L26.0000”
    • Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
