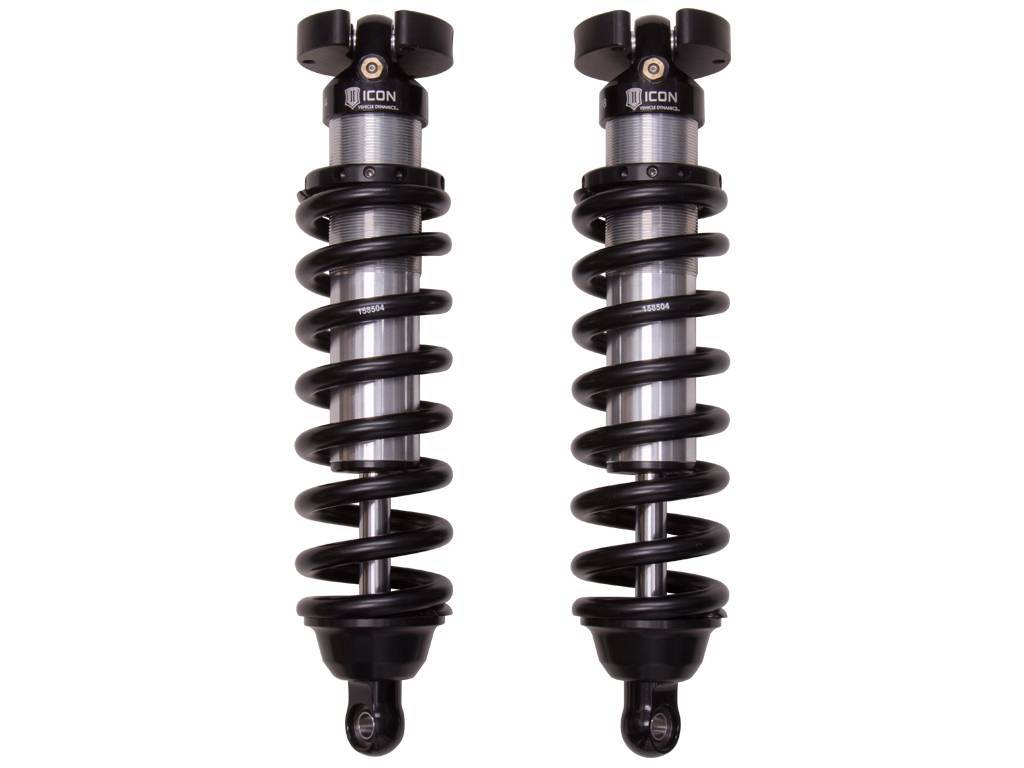

ICON 1996-04 Toyota Tacoma/96-02 4Runner 2.5 VS Extended Travel Coilover Kit
Coilover Spring and Shock Assembly
1996-2004 TACOMA/1996-2002 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your Tacoma or 4Runner's front suspension. These coil-overs are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear. These are a Race-Proven shock designed for the daily driver and the avid off-roader all in one!
- Adjustable ride height from 0" - 3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearings
- Completely re-buildable
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
Compatibility
1996-2002 Toyota 4-Runner
*Does NOT FIT 5 lug Tacoma
NOT for use with Factory Upper Control Arms
Technical Specs
Application Notes
Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) TECH NOTE: Aftermarket front upper control arms required for installation
Details
- 58615
- 58615
- 00840103403793
- ICON Vehicle Dynamics
- New
Shipping Information
- Item Requires Shipping
- 42.0 lbs.
- W13.0000” x H7.0000” x L26.0000”
- Free Shipping via UPS Ground in the lower Contiguous 48 United States Only, Orders Over $200 USD
