Description

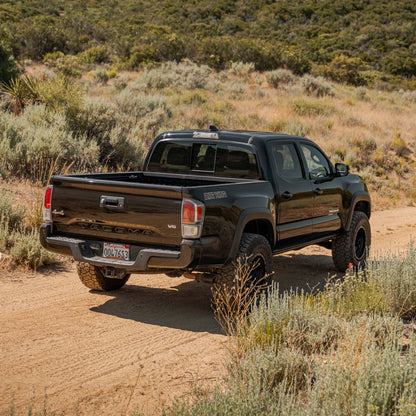

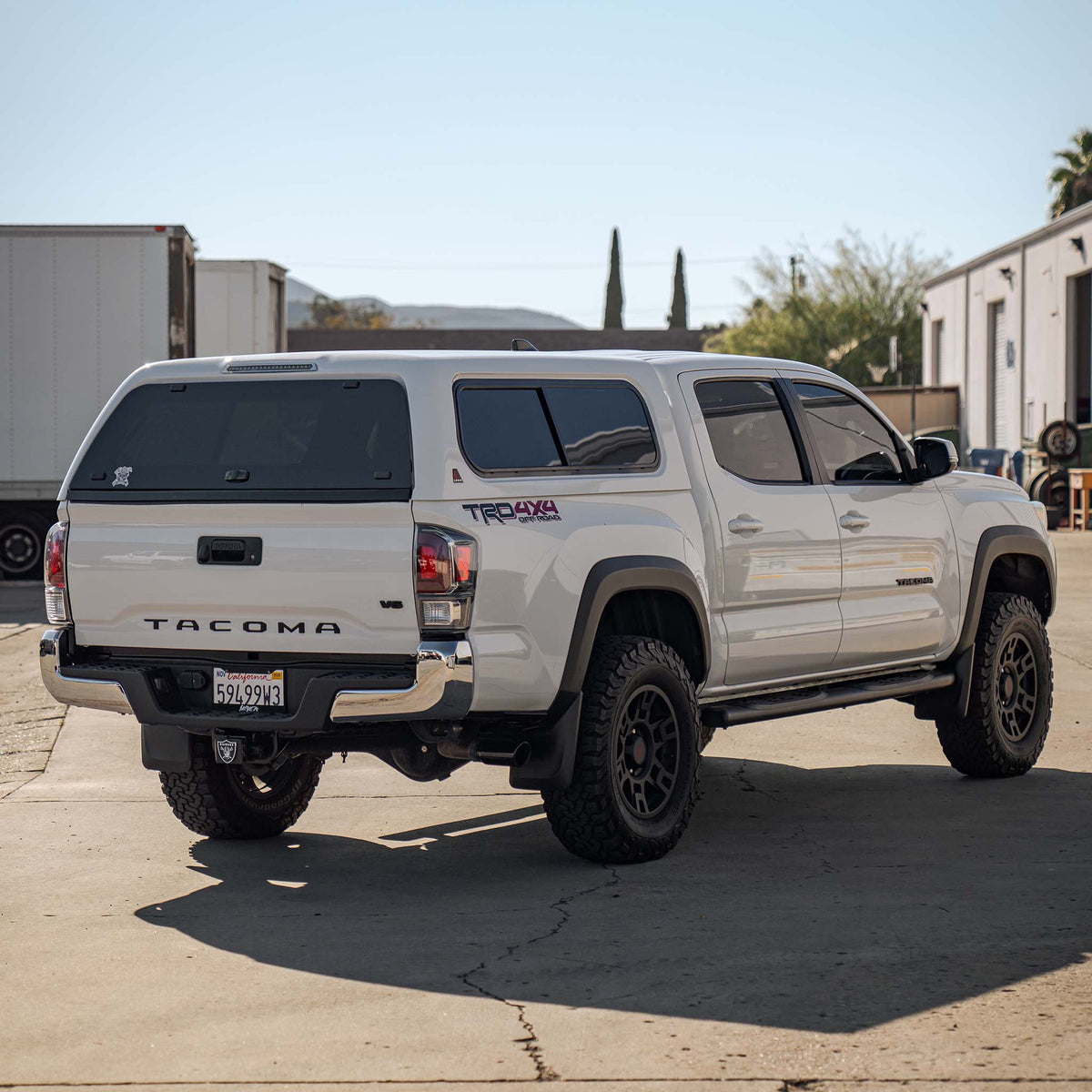

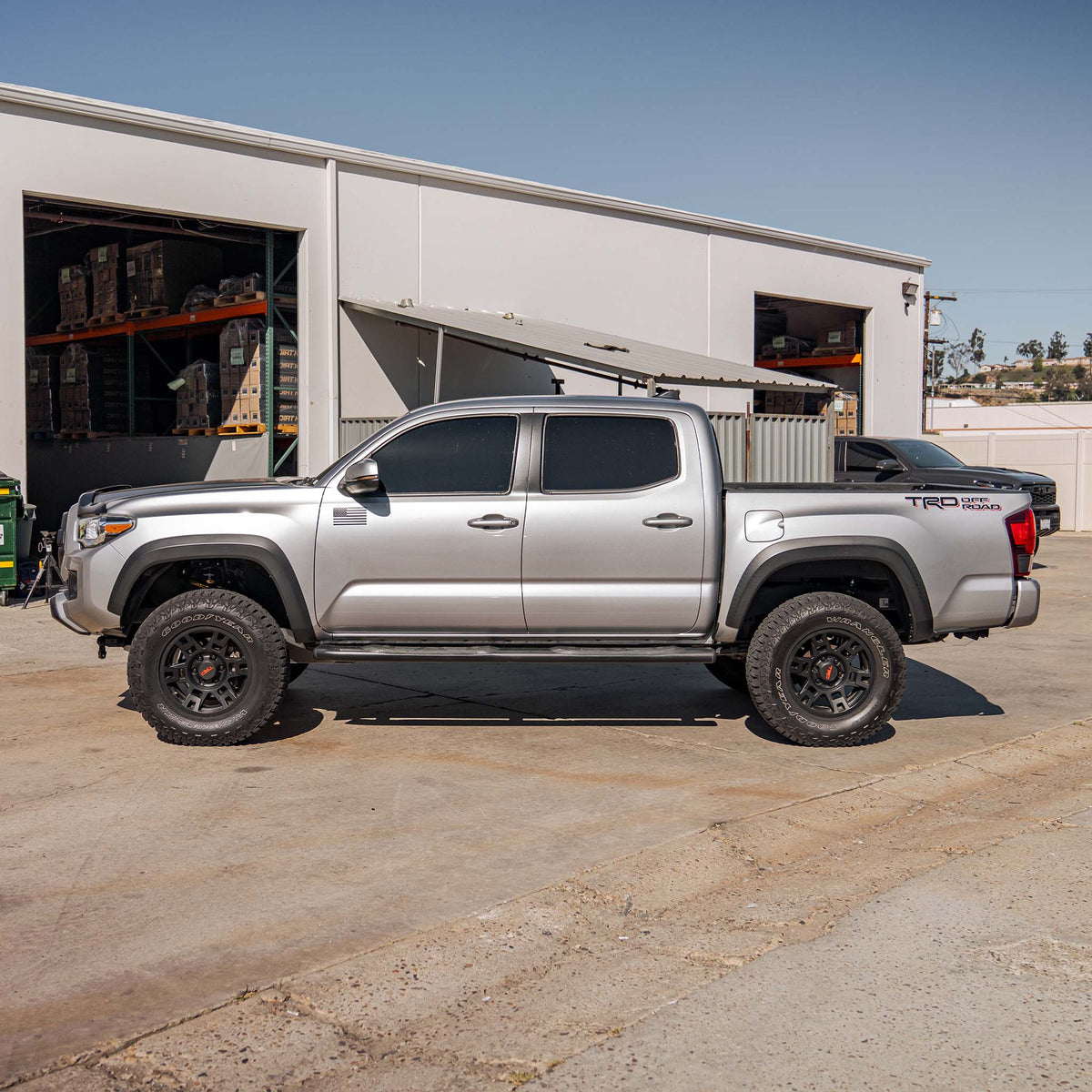

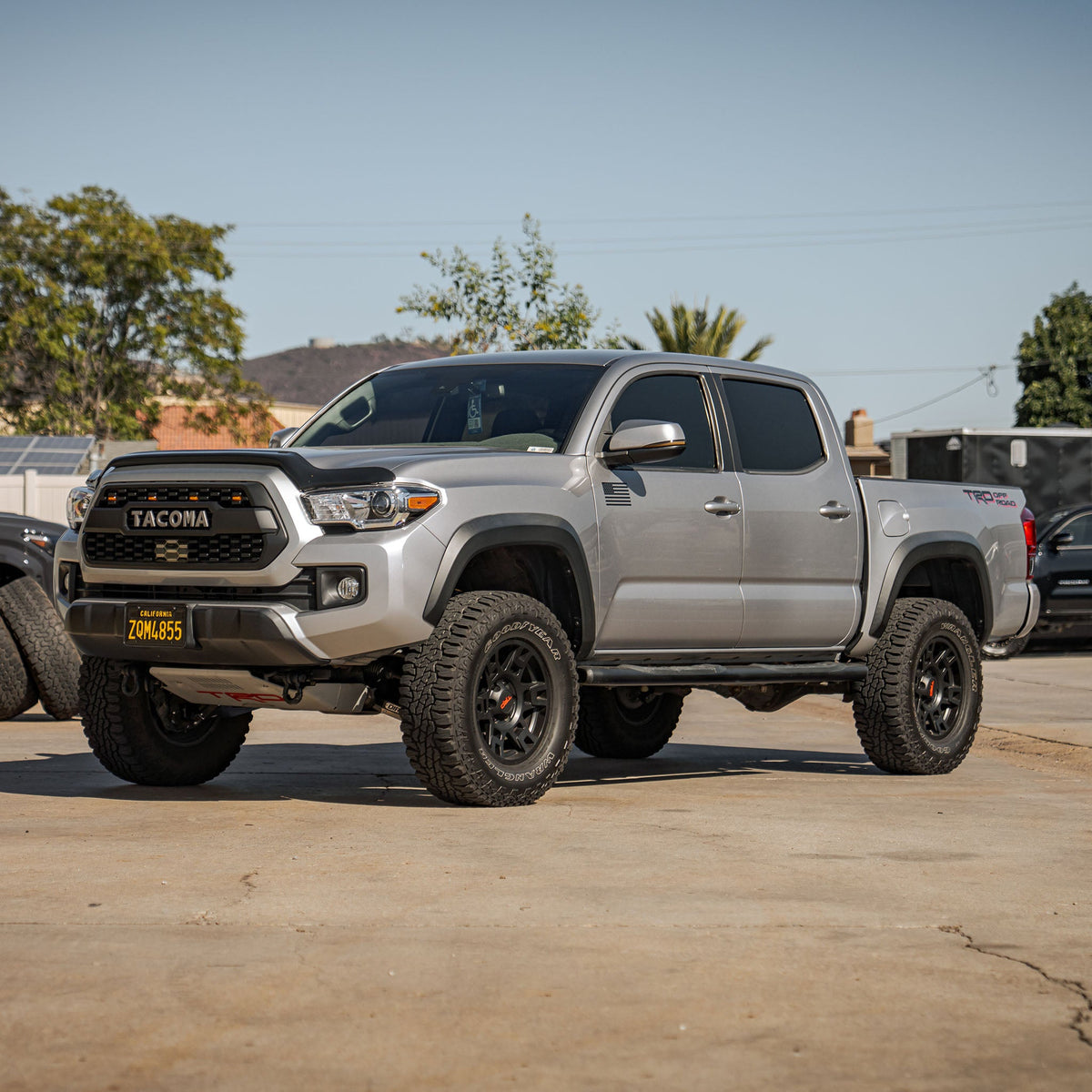

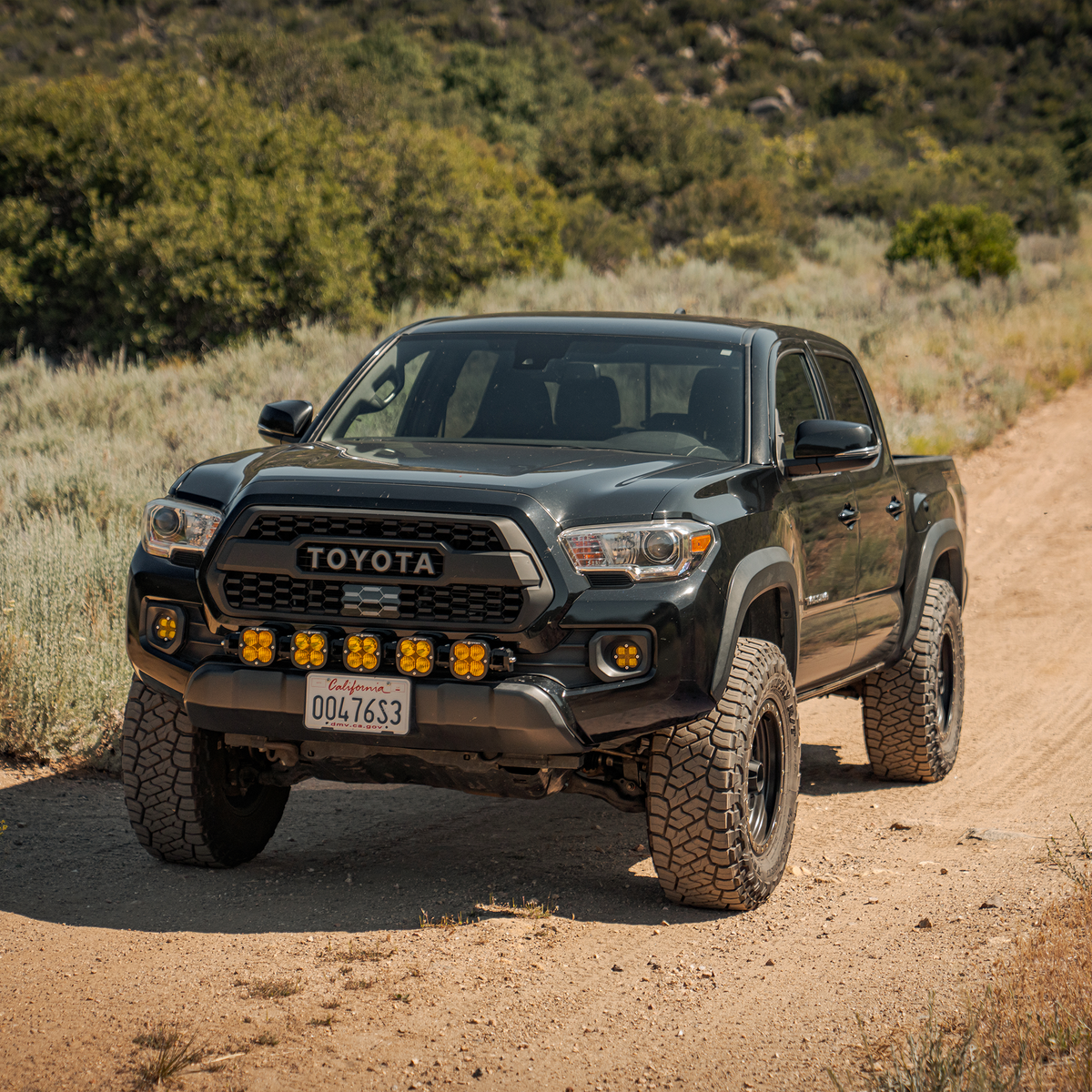

Transform your Tacoma by eliminating front-end rake and achieving a leveled lift with the Dirt King MT Trail Runner Kit. This cost-effective solution includes Dirt King's 4130 Upper Control Arms, 2.0 IFP Front Coilovers, and 2.0 IFP Rear Shocks—all expertly tuned for superior comfort during everyday driving and on rugged trails. It's the perfect choice for those looking to enhance their vehicle's appearance and ride quality without the premium price tag of an extreme off-road package. For unmatched off-road control, adjustability, and high-speed desert capability, consider our MT PreRunner Kit.

Specifications

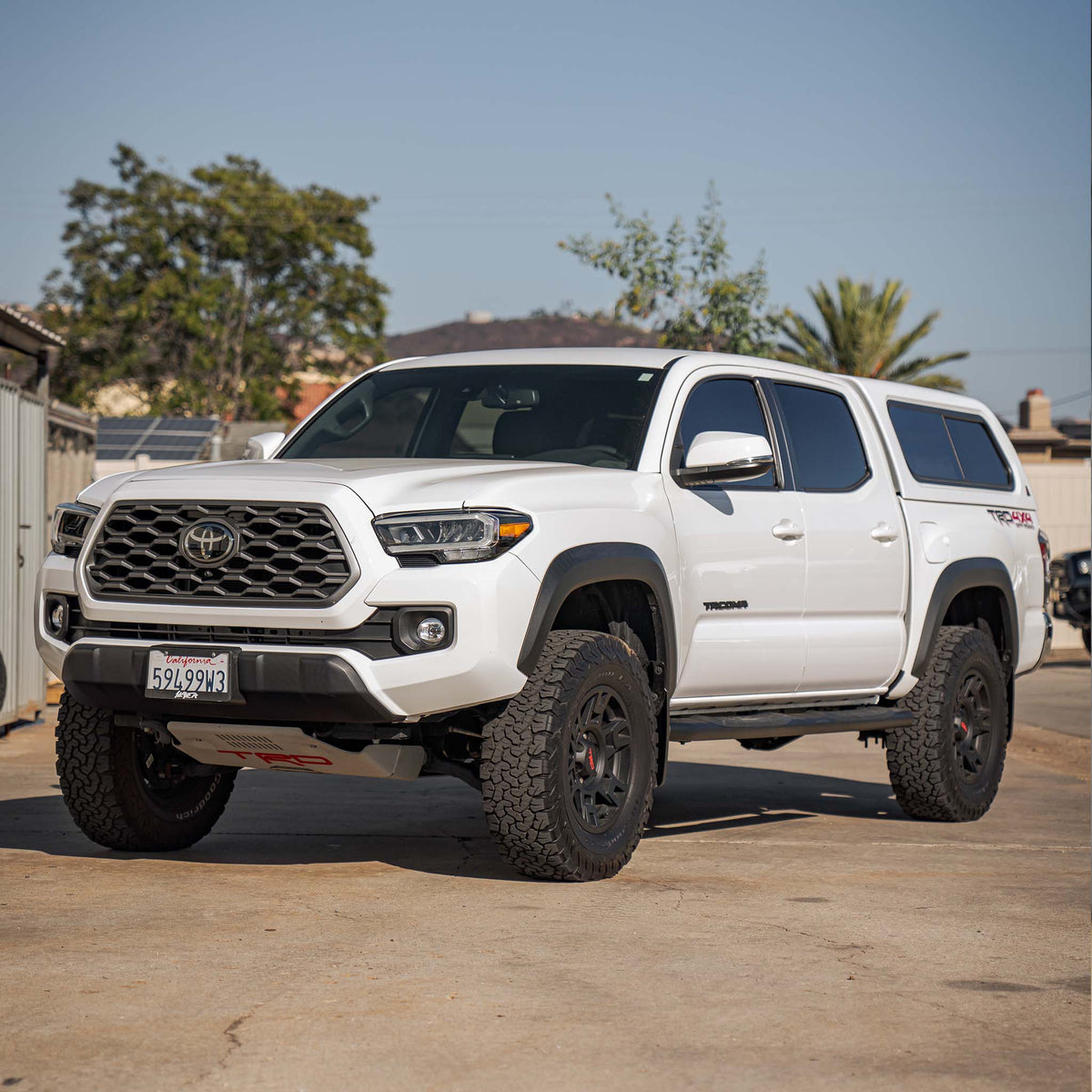

Front Lift Height

• Out of the Box: Provides 2" of lift (levels vehicle).
• Max Recommended Setting: Up to 3" of lift.

Rear Lift Height

• Out of the Box: Factory height is retained.

Additional Specifications

• Track Width: Stock
• Maximum Backspacing: 4.75"
• Minimum Rim Size: 16"
• Shock Bodies: 2" hard-anodized 6061 aluminum
• Shock Shafts: Induction-hardened 5/8"

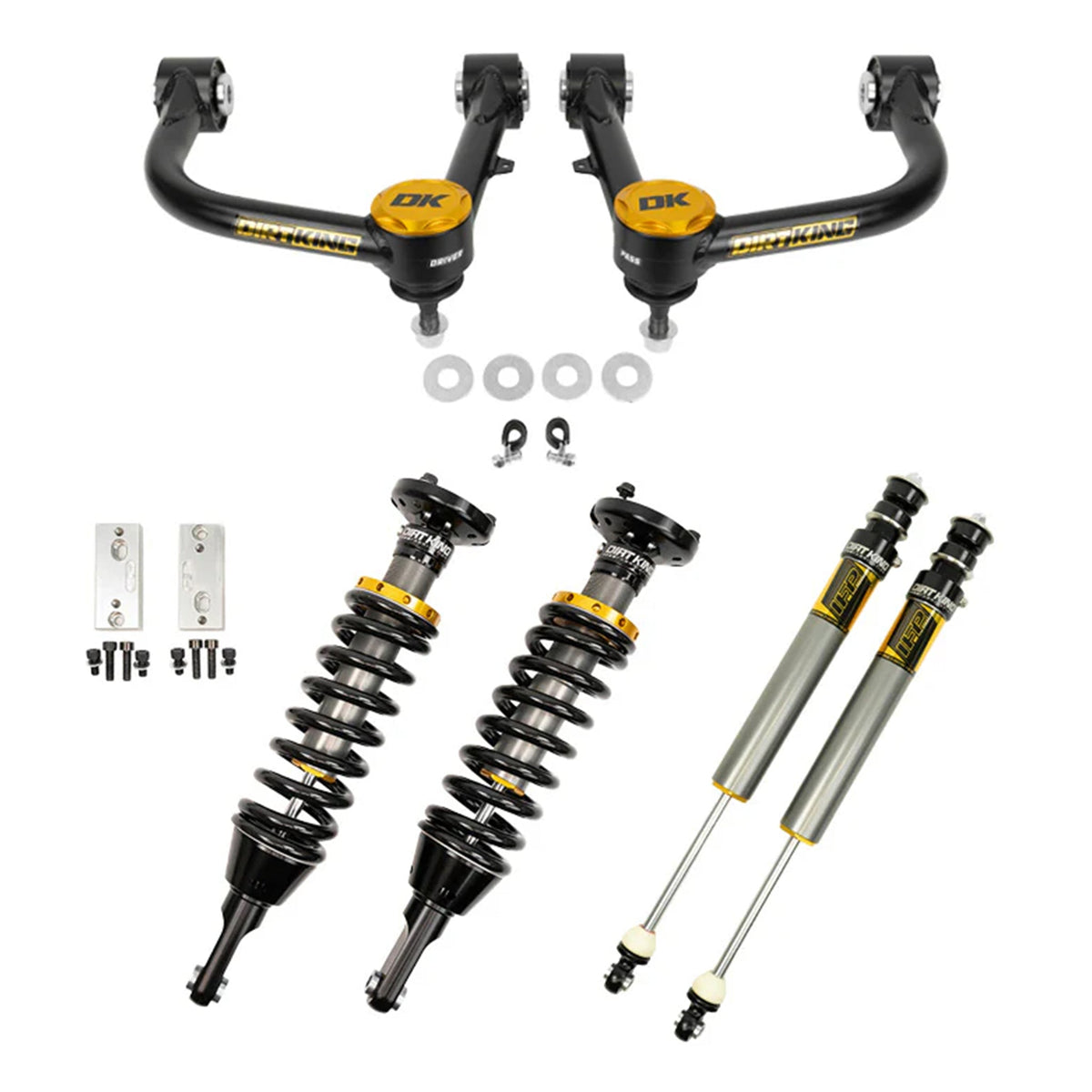

What's Included

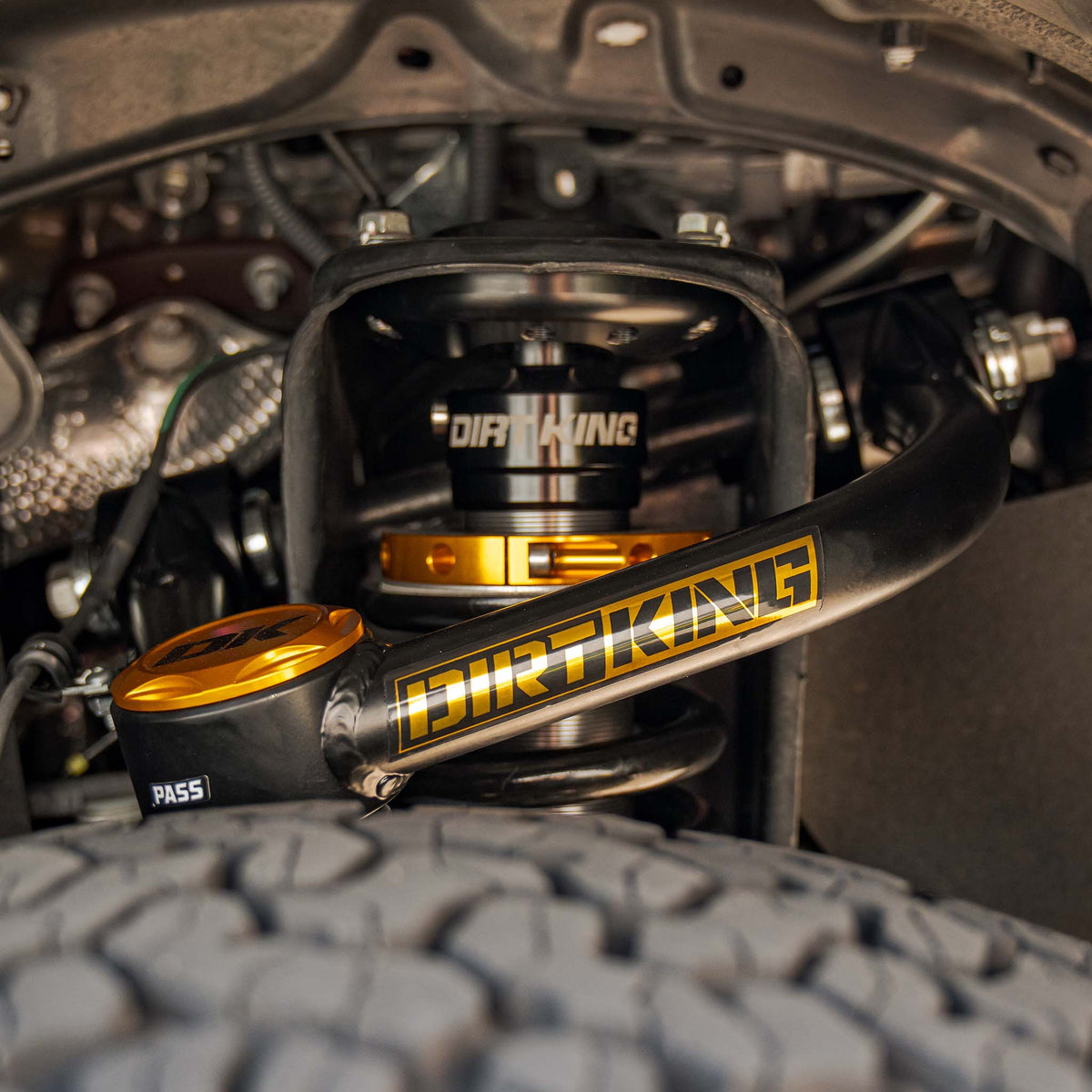

• Dirt King 4130 Chromoly Upper Control Arms
• Dirt King 2.0 IFP Front Coilovers

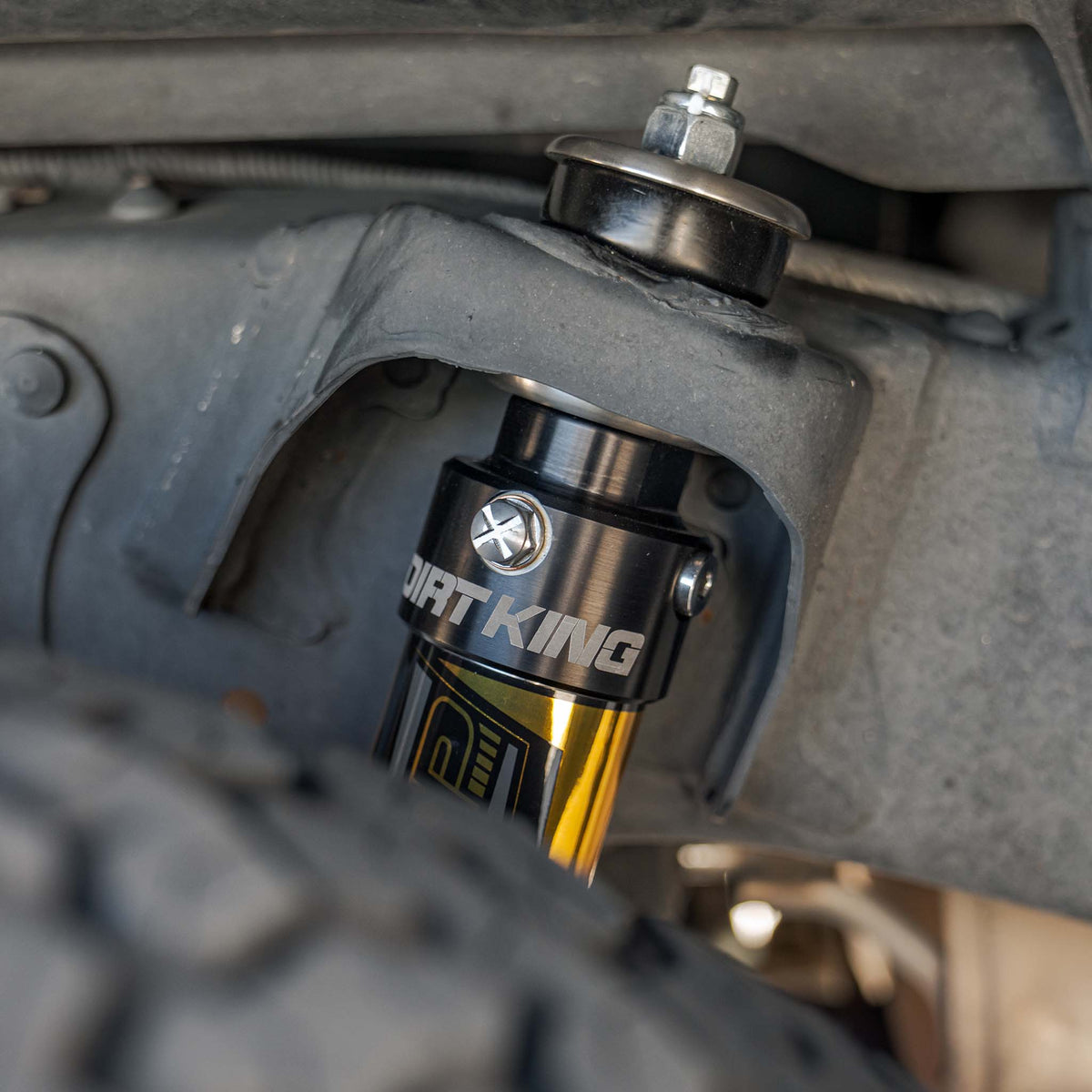

• Dirt King 2.0 IFP Rear Shocks
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions

Features

• Pro 4 Series Ball Joints: SAE4140 housing, 76° of articulation, and induction-hardened ball stud for maximum strength and smoother steering feel.
• SilentSpin Bushings: Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation.
• Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
• Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
• Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
• Durable Construction: The upper control arms are professionally MIG welded using 4130 chromoly tubing and finished with a black powder coat.
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.

Instructions

Compatibility

2005-2023 Toyota Tacoma 2WD / 4WD

*Not compatible with 5 lug Tacoma’s
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.

*All Dirt King shocks are backed by a comprehensive one year warranty.

2005-2023 Toyota Tacoma 2WD / 4WD

*Not compatible with 5 lug Tacoma’s
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
