MT PreRunner Kit

Transform your Tacoma by eliminating front-end rake and achieving a leveled lift with the Dirt King Prerunner Kit. This package includes Dirt King's Billet Upper Control Arms, 2.5 DCA Front Coilovers, and 2.5 DCA Rear Shocks—all expertly tuned for off-road capability while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. It's the perfect choice for those looking to enhance their vehicle's off-road performance and ride quality.

• Pro 4 Series Ball Joints: SAE4140 housing, 76° of articulation, and induction-hardened ball stud for maximum strength and smoother steering feel
• SilentSpin Bushings: Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation
• DCA Remote Reservoirs: Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments.
• Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
• Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
• Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
• Durable Construction: Precision-machined from 6061 aluminum for strength and durability.
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.

Front Lift Height

• Out of the Box: Provides 2" of lift (levels vehicle).
    ○ Max Recommended Setting: Up to 3" of lift.

Rear Lift Height

• Out of the Box: Factory height is retained.

Additional Specifications

• Track Width: Stock
• Maximum Backspacing: 4.75"
• Minimum Rim Size: 16"
• Shock Bodies: 2.5" hard-anodized 6061 aluminum
• Shock Shafts: Induction-hardened 7/8"

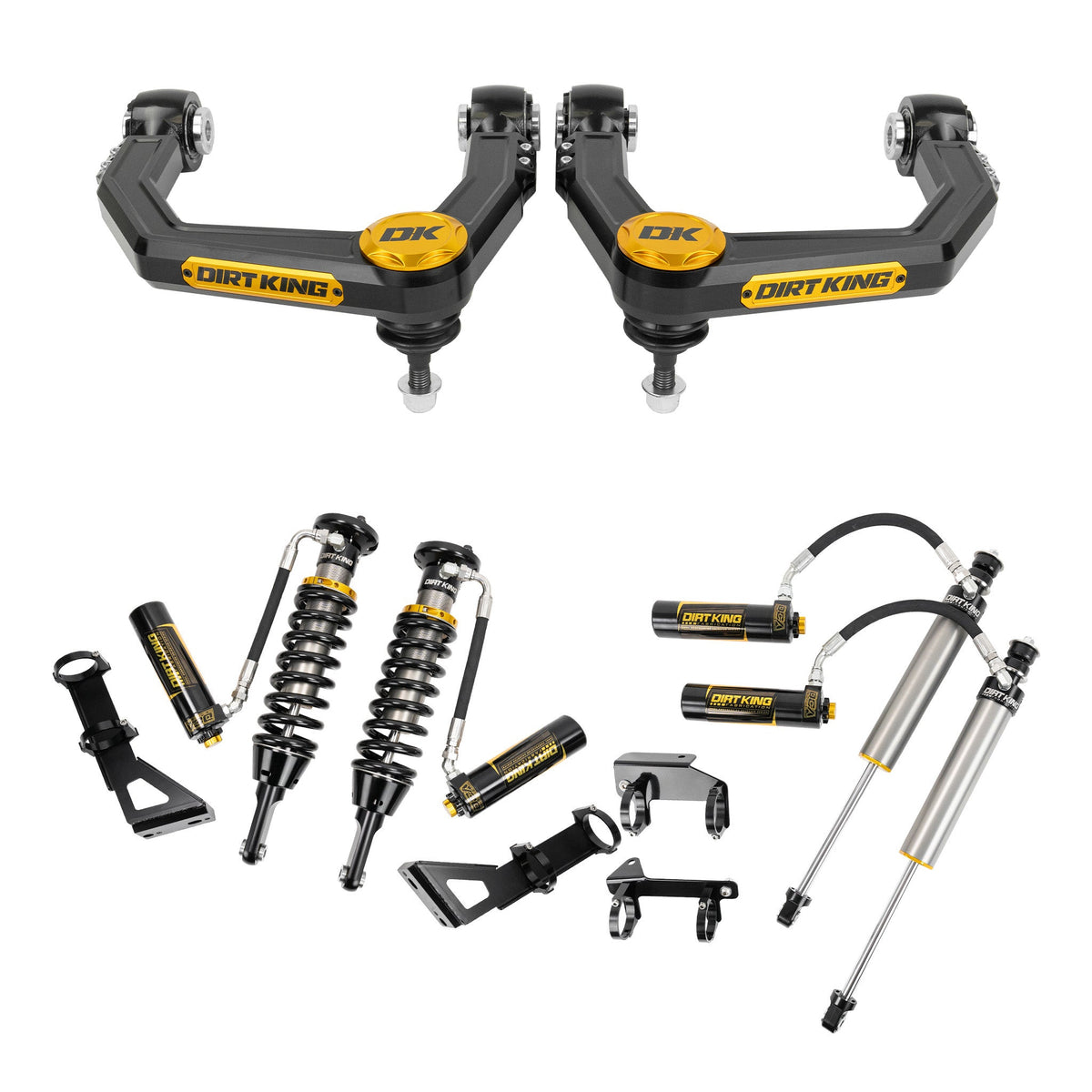

• Dirt King Billet Upper Control Arms
• Dirt King 2.5 DCA Front Coilovers
• Dirt King 2.5 DCA Rear Shocks
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions

2005-2023 Toyota Tacoma 2WD / 4WD

*Not compatible with 5 lug Tacoma’s
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the
respective manufacturer.

*All Dirt King shocks are backed by a comprehensive one year warranty.
